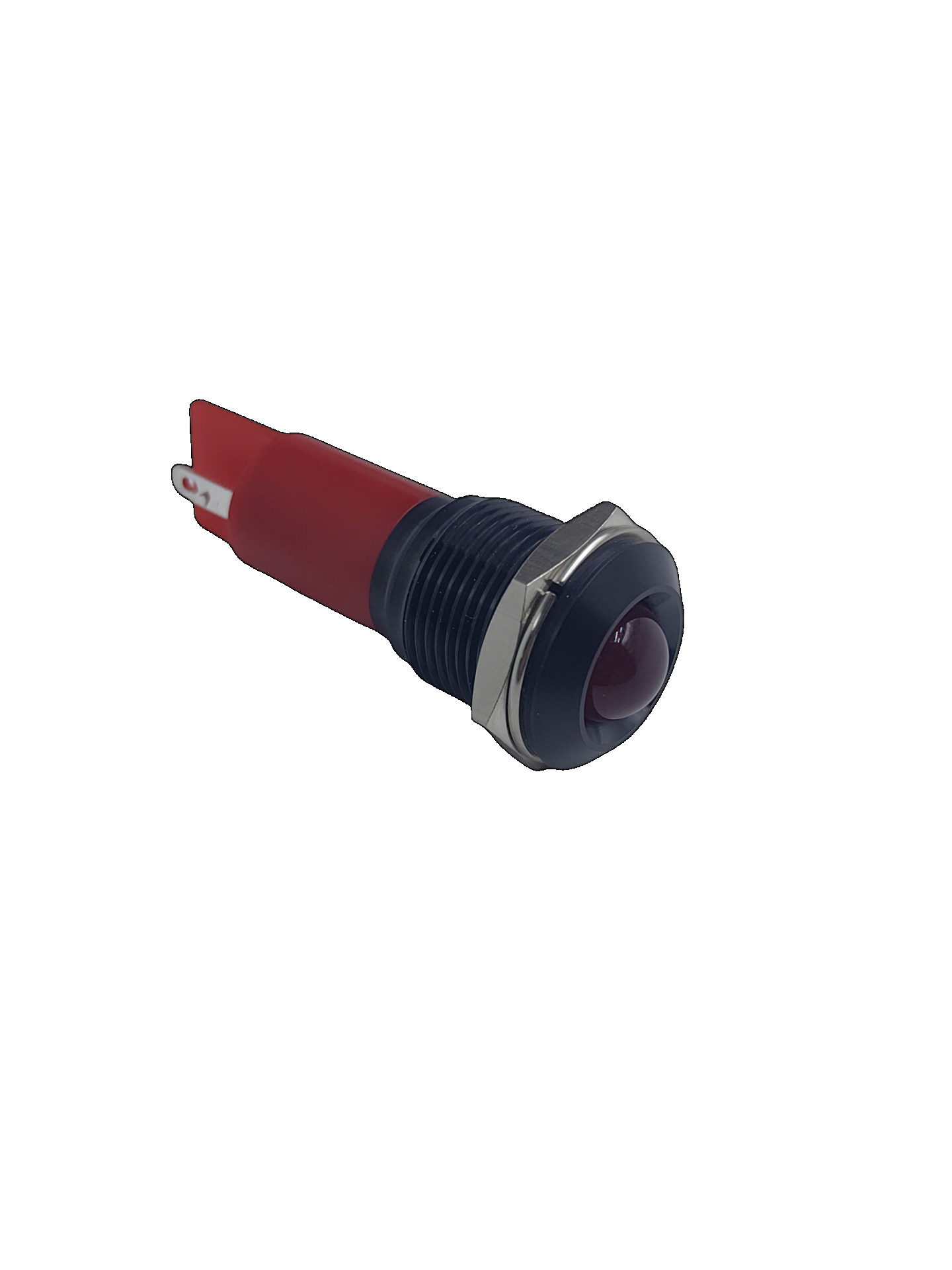

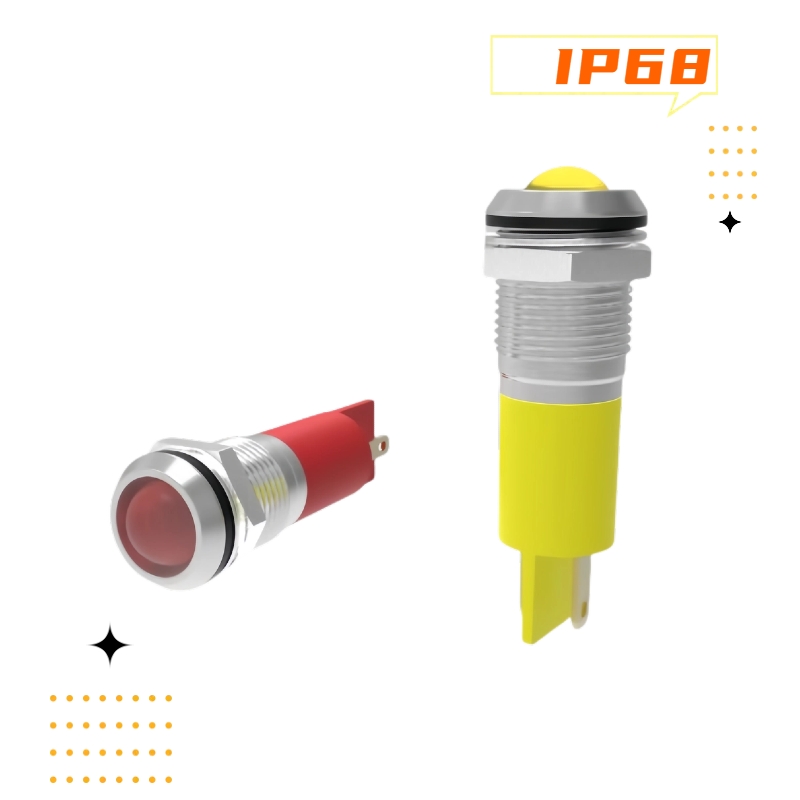

SIGNAL LAMP/PBM-14I Series

SPECIFICATIONS

Mounting hole： Φ14mm

Lamo color：R / G / Y / O / B / W

Lamp voltage：1.8V,3V,6V,12V,24V,110V,220V

Lamp type：LED

Rated Current：2mA～20mA

Torque： About1.2Nm

Panel Thickness：1~8mm

Operating Temperature：-20℃~+85℃

Solder Heat Resistance： 320℃(or 30W soldering iron) no more than 2 seconds)

Crust material：Nickel-plated brass/Black-plated brass/stainless steel

Lamp cover material：Eposy（Anti-UV can be made to order）

Base material： PA66

IP degree：IP68

ILLUMINATION BASE RATlNG：

Red， Yellow and Orange：20mA 1.8V;

Blue, Green and White：20mA 2.8V
